Overview

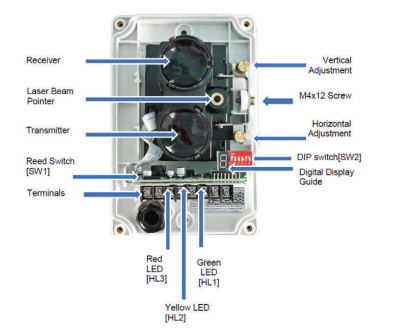

LF-X5130 Conventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user
friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with
additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector
which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.
The LF-X5130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters
beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental
requirement. The LF-X5130 works on the principle of reflective infrared beam obscuration. Used in conjunction with a
reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke.
The LF-X5130 is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure
centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places
where slight smoke particles or corrosive gas exist.

Features and Benefits

• EN54-12 Compliance
• Hassle free alignment, built with digital guide display and laser beam
pointing
• Employ single-ended design through reflective mirror
• Four ranges wide monitoring from 8-100 meters via encoder
• Three users programing sensitivity adjustment
• Built-in microprocessor
• Self-diagnosis function can monitor for internal faults
• Automatic compensation for factors weakening
received signals, such as dust contamination,
positional movement and ageing of the transmitter
• Fire and Fault interfacing relays
• Attractive and pleasing appearance
• Real User friendly alignment method

Technical Specification

Standard
Listed LPCB Certification
Compliance EN 54-12:2015
Fire Detection and Alarm Systems BS 5839 Part 1:2017

Specification
Operating Voltage 20 V to 28 V DC
Current Parameters Standby: 23mA, Commission: 56mA, Alarm: 33mA
Beam Sensor Sensitivity [via Encoder] Level 1: 2.6 dB High Sensitivity
Level 2: 3.8 dB Medium Sensitivity
Level 3: 5.8 dB Low Sensitivity
Beam Pathway Length [via Encoder] Span 1: 8 to 20 meters Limited Path
Span 2: 20 to 40 meters Short Path
Span 3: 40 to 70 meters Normal Path
Span 4: 70 to 100 meters Long Path
Beam Path Angle ±0.4º Directional (This data takes the average of
the left and right deflection angles.)
Alignment Guide Laser Beam Pointer
Digital Display Guide Nixie Tube
LED Indicator Guide Red: Fire; Yellow: Fault; Green: Alignment
Reset Time Less than 2 Second
Relay Capacity [Fire & Fault] Normally Open & Close/ 2.0 A; 30 VDC

Physical
Material / Colour ABS / White
Dimension / Weight L:190.87 x W:126.87 x H:91.96 mm / 440 gm
Weight 0.130 Kg with base

Physical
Operating Temperature -10°C to +50°C
Ingress Protection Rating IP30 [IP66 glue seal-For permanent fixing,
Not EN54-12 approved]
Humidity 0 to 95% Relative Humidity, Non condensing
